BALUGATM

and

SantaMariaTM 10A and SantaLuciaTM 20Amp /IEC

Bocchino Audio Power Plugs.

The BalugaTM uses the same high design standards that are incorproated in all of Bocchino Audio product;

*Twin M6 SS304 Set screws to hold the wire cores of each polatity in place.
*Zirconium Copper Silver plated Power Tongs. ( also available in Pure Copper Silver plated )
*Power tongs can take cable wire cores up to 6mm in diameter.
*Polymer is     UHMW/PE  ( Ultra High Molecular Weight PolyEthylene: eg: atomic weight  of one water molecule is 18 amu. One molecule of UHMW/PE  is 7 000 000 )  Dielectric of UHMW/PE is 2.3 Teflon is 2.2.
*Locking Screws for cabling jacket are Nylon M10 set screws and 4 are utilised.
*Rear Neoprene gland and rear gland bracket standard on all models.
*Power Core is held in place with 3 x 65mm long SS 304 bolts which penetrate deep into the Plugs' Glove.


SantaMariaTM and SantaLucia IEC body is also UHMW/PE with  Zirconium Copper ( alloy C15000 Cu> 99.5% and conductivity IACS >98%  ) tongs, silver plated.
Other electroplating finishes are also available: Namely: Palladium, Platinum, Rhodium and Gold on Silver.
All plugs are also available with Fine Silver tongs with none or added electroplate; Please inquire if you seek a non standard finish.

***Robustness is at the heart of the BalugaTM and SantaMariaTM plugs.***

Available  Plugs Designs:
Plug Name
Polymer
<20 price
>20 price
Baluga2TM: Baluga Americaine
UHMW/PE 7 000 000 amu
$515.00
$455.00
Baluga3TM: Baluga Australis
Also Baluga 5 Baluga Heemskirk.
UHMW/PE 7 000 000 amu
$535.00
$455.00
SantaMariaTM IEC
UHMW/PE 7 000 000 amu
$515.00
$455.00
SantaLuciaTM IEC 16A/20A
UHMW/PE 7 000 000 amu
$535.00
$475.00
Mariner10  IEC 10 Amp Chassis Socket.
UHMW/PE 7 000 000 amu
$535.00 ( minimum 10 )
$455.00

For Quantities greater than 100 plugs click here to  contact Bocchino Audio via email.




Characteristics
Baluga(2) Americaine Plug
SantaMaria 10 Amp IEC  plug
SantaLucia 20 Amp IEC Plug
Mariner10 IEC 10 Amp Chassis Socket.
Tong Metallurgy:
Pure Copper C10100 99.996% Pure Copper 101% IACS conductivity
Zirconium Copper 99.5% Copper 0.45% Zirconium 98% IACS conductivity
Zirconium Copper 99.5% Copper 0.45% Zirconium 98% IACS conductivity
Pure Copper C10100 99.996% Pure Copper 101% IACS conductivity
Electroplate
Platinum on thick Silver electroplate
Platinum on thick Silver electroplate
Platinum on thick Silver electroplate
Platinum on thick Silver electroplate
Maximum Cable Jacket Diameter
23mm
23mm
23mm
N/A
Maximum Cable Wire cross-sectional area in Tong
3 AWG
3AWG
3AWG
3 AWG
Rated Power
7 KVA
7 KVA
9 KVA
7 KVA
Tong Current rating
60 Amps continuous with < 3OC  rise: Coolest Plug on the market
30 Amps continuous with < 3OC  rise: Coolest Plug  of its type on the market
45 Amps continuous with < 3OC  rise: Coolest Plug  of its type on the market
30 Amps continuous with < 3OC  rise: Coolest Plug  of its type on the market
Polymer
UHMW/PE ( Neutral No Additives > 7 000 000 amu molecular chain )
UHMW/PE ( Neutral No Additives > 7 000 000 amu molecular chain )
UHMW/PE ( Neutral No Additives > 7 000 000 amu molecular chain )
UHMW/PE ( Neutral No Additives > 7 000 000 amu molecular chain )
Dielectric
2.3  ( Teflon is 2.2 ) Volume resistivity > 1018 ( Teflon, same )
2.3  ( Teflon is 2.2 ) Volume resistivity > 1018 ( Teflon, same )
2.3  ( Teflon is 2.2 ) Volume resistivity > 1018 ( Teflon, same )
2.3  ( Teflon is 2.2 ) Volume resistivity > 1018 ( Teflon, same )
Stay Hold on Cable Jacket
4 x 4 x M10 Nylon Stay screws
4 x 4 x M10 Nylon Stay screws
4 x 4 x M10 Nylon Stay screws
2 x 6 x M6 Set Screws per polarity
Gaskets
Forward and rearward backplate: 3.0mm Neoprene
BackPlate 3.0mm Neoprene
BackPlate 3.0mm Neoprene
Front Earthable Brass mounting plate with Neoprene gaskets to accommodate differing chassis thickness customised supply.

Other Variants:
Baluga4  20 Amp American Plug.
Baluga3: 10 Amp Australian // NZ // China Plug.
Baluga5: 20 Amp Australian // NZ // China Plug





Dimensions
Length
Width
Height
Weight
Baluga2
110mm
41mm
66mm
250 grammes
Baluga3
110mm
41mm
69mm
285 grammes
SantaMariaTM IEC
119mm
41mm
66mm
285 grammes
SantaLuciaTM IEC
119mm
43mm
72mm
355 grammes



BALUGA2
SENTAMARIA IEC

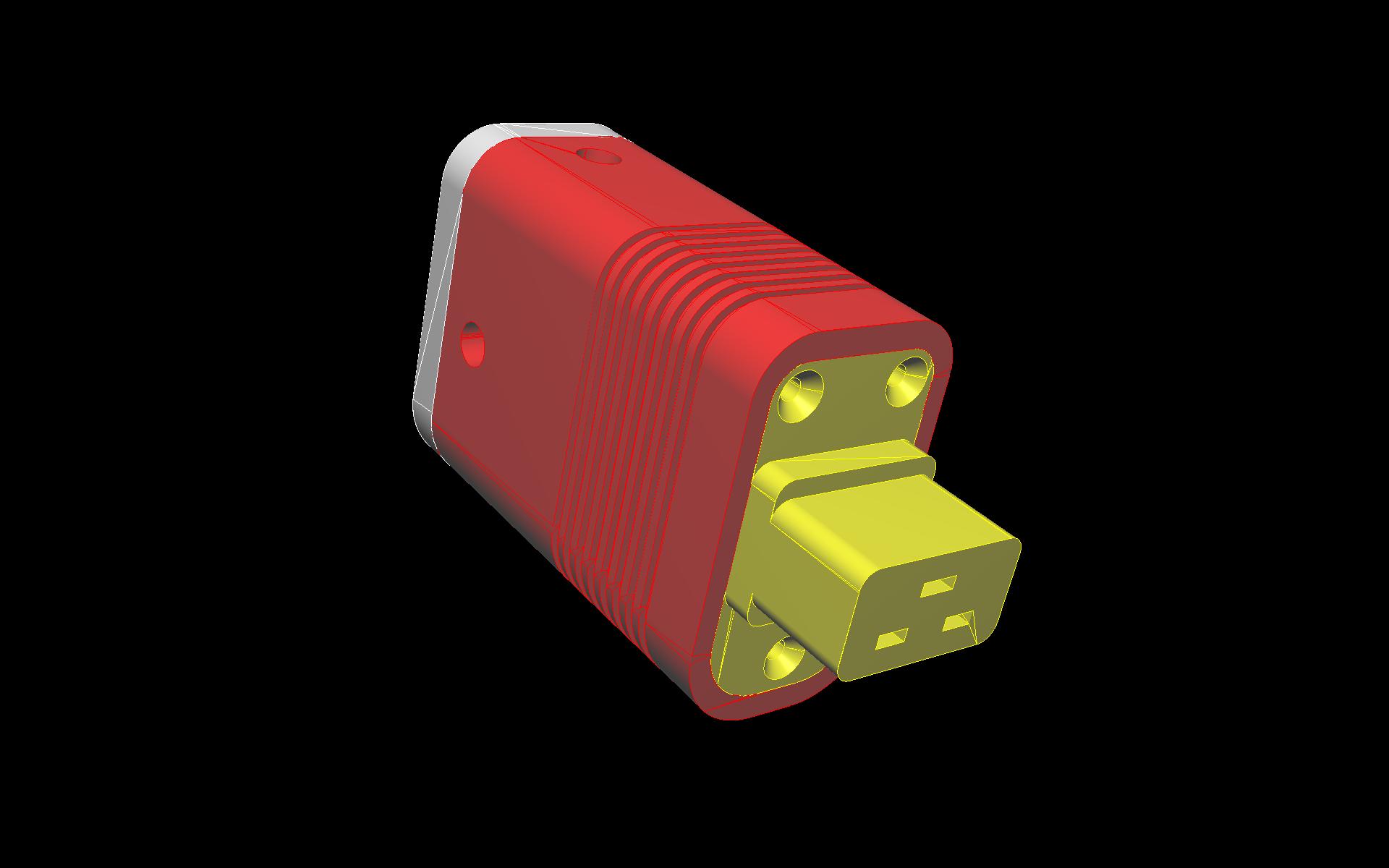

SANTALUCIA IEC

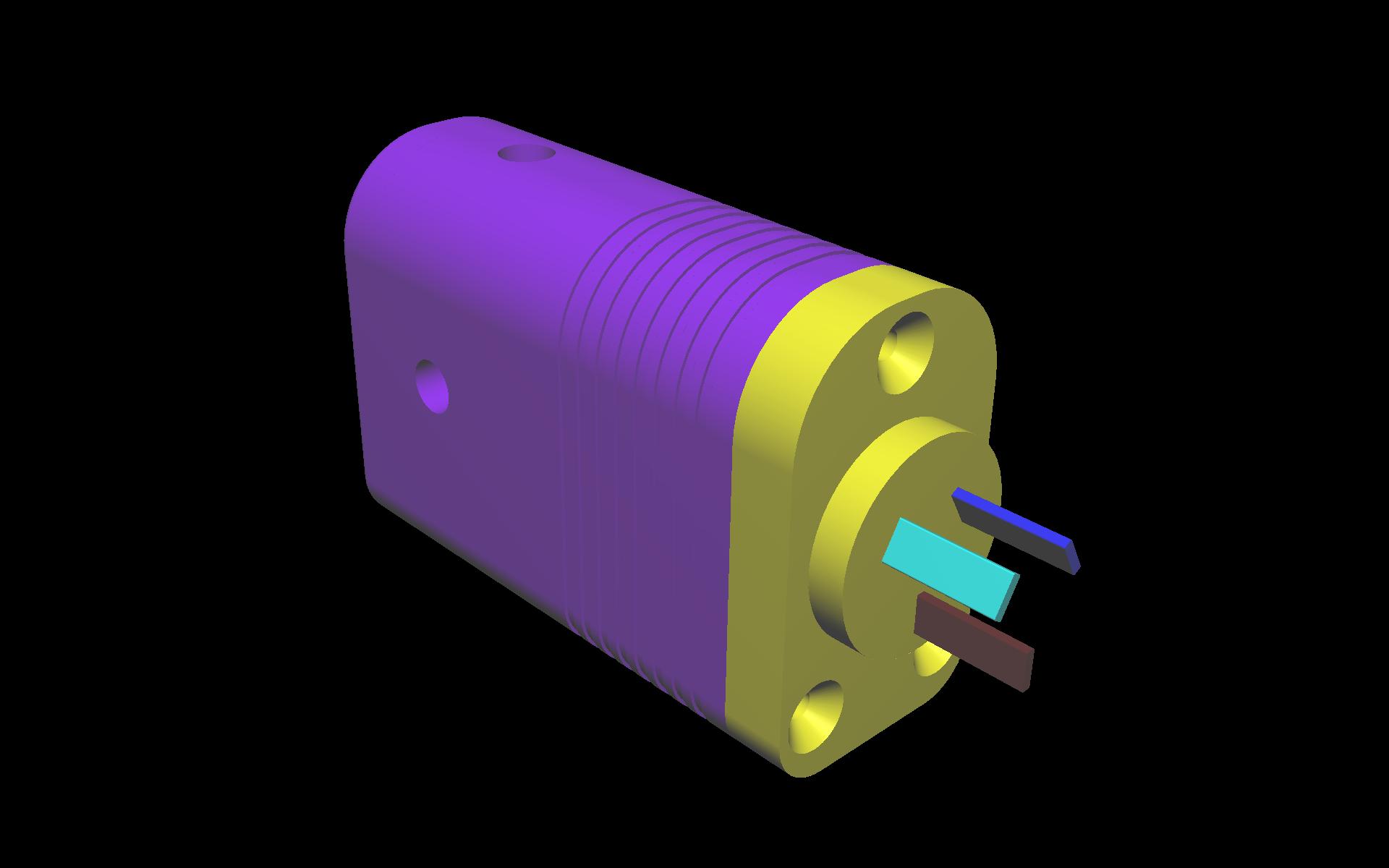

BALUGA3

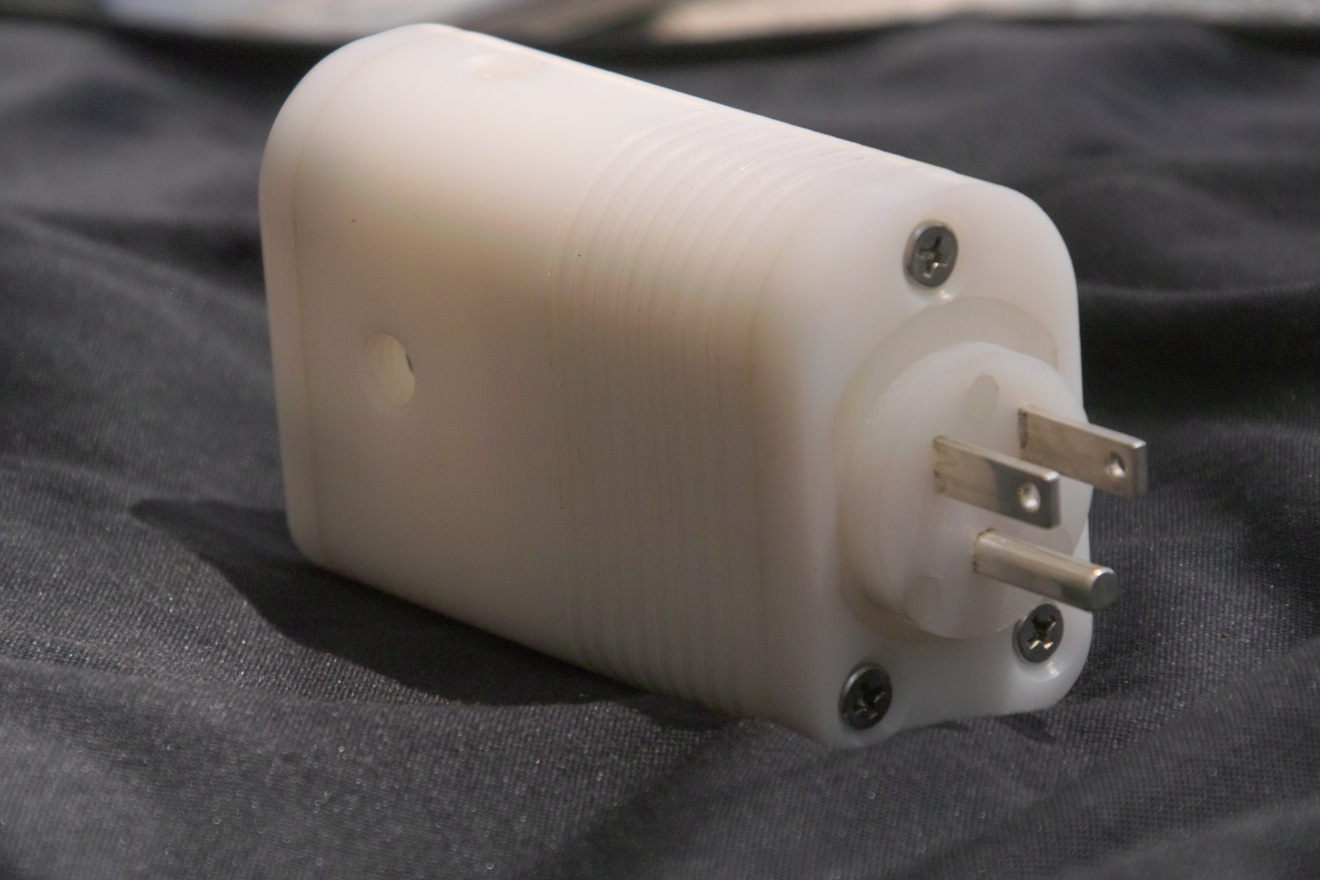

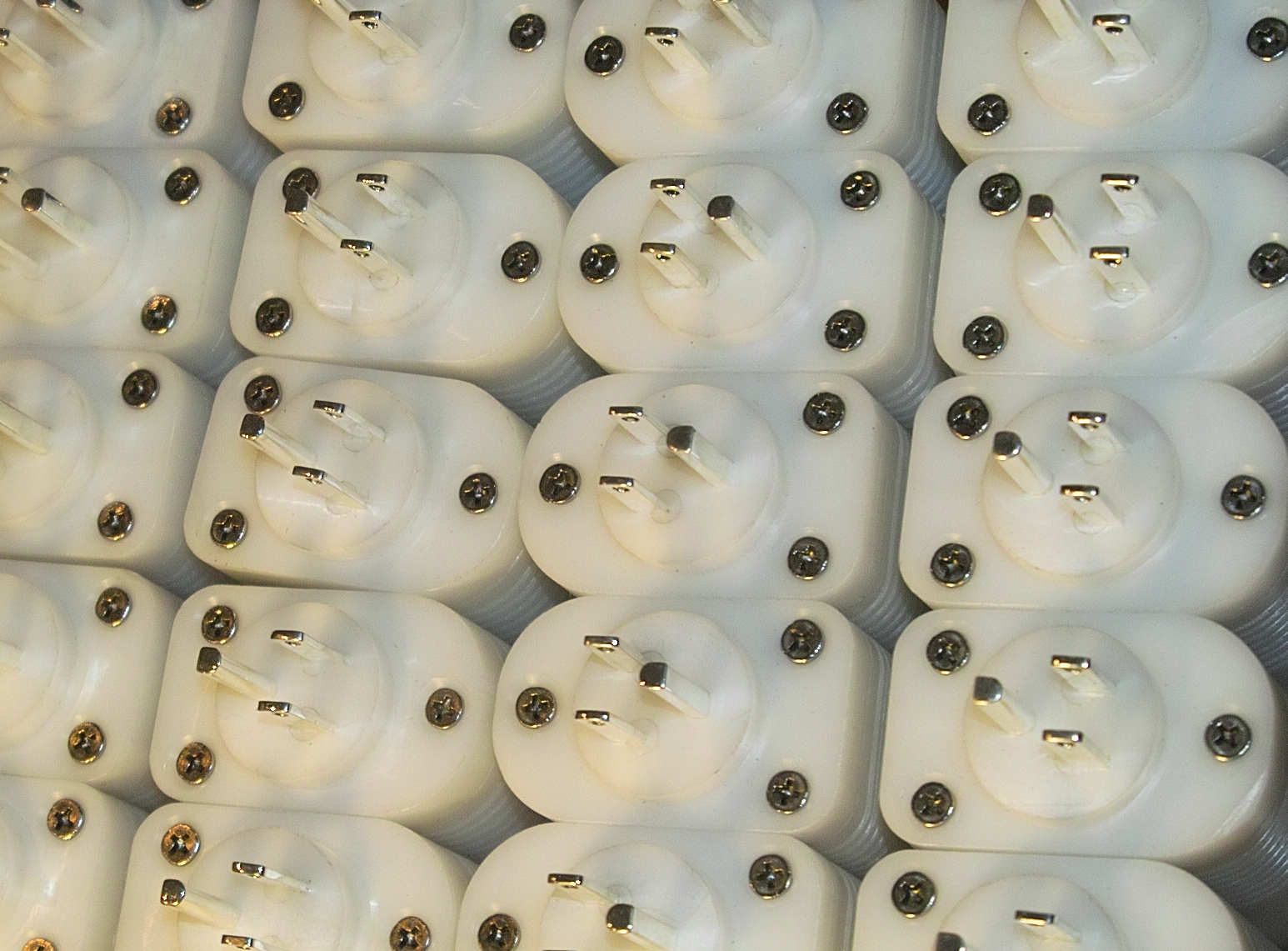

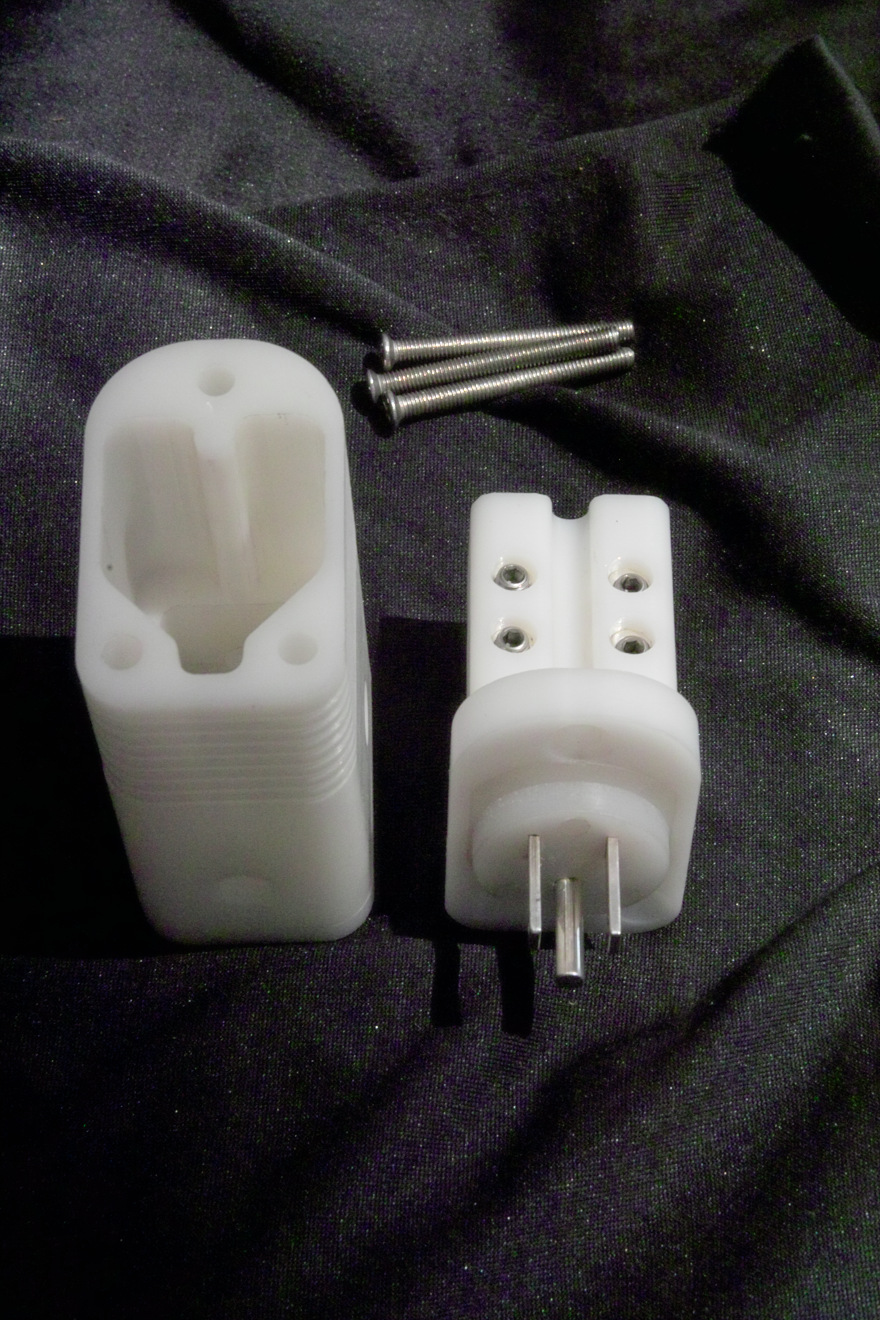

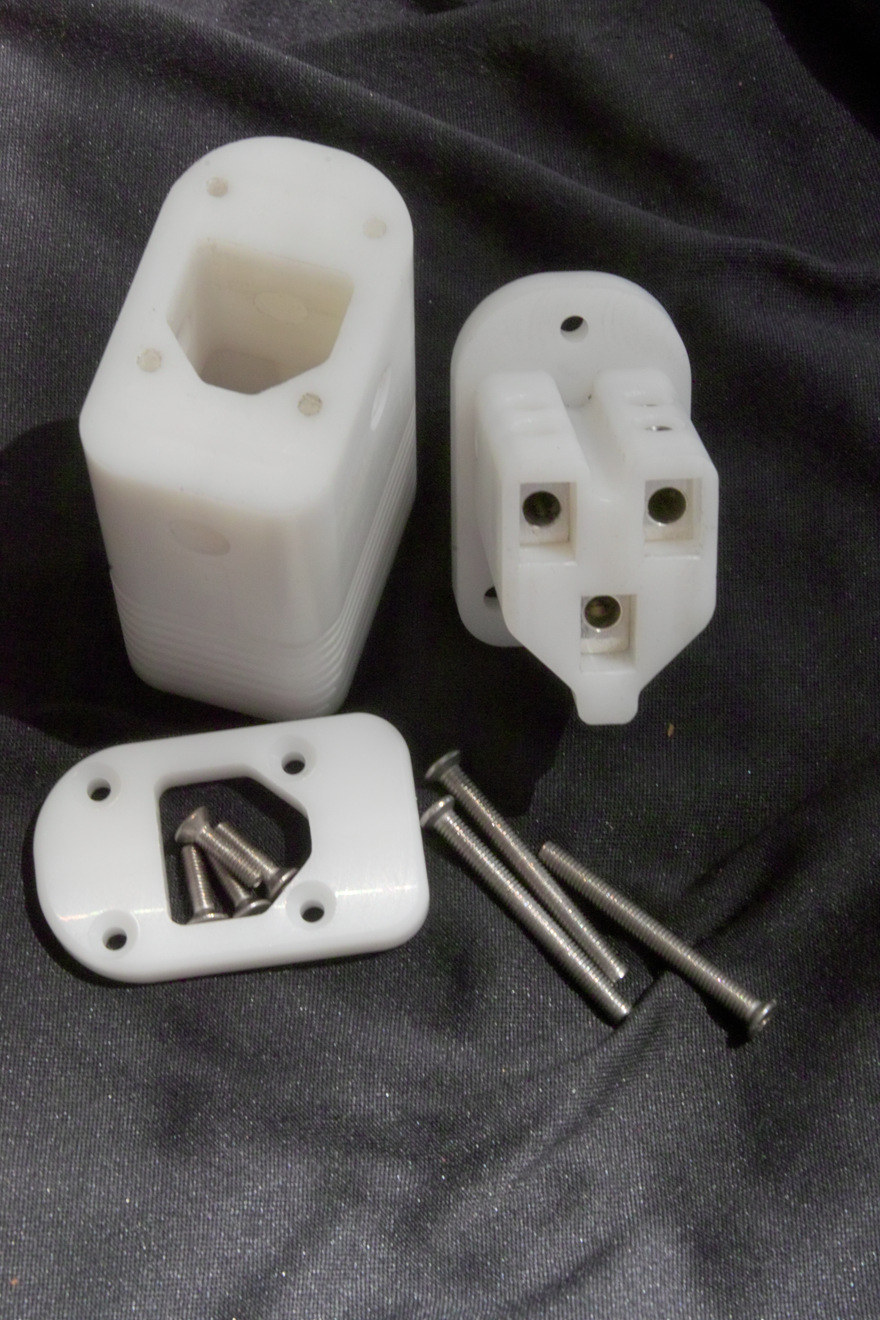

IMAGES BELOW ARE OF BALUGA2TM: BALUGATM AMERICAINE!!

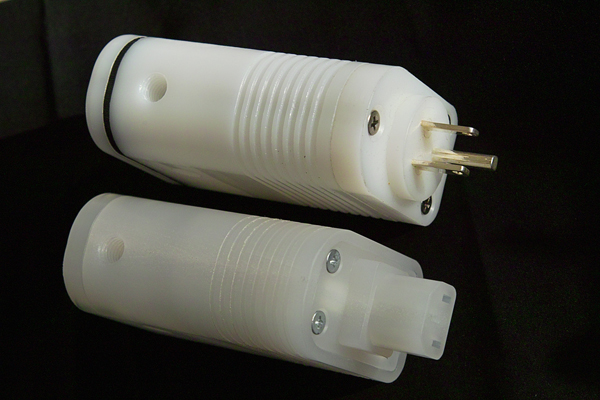

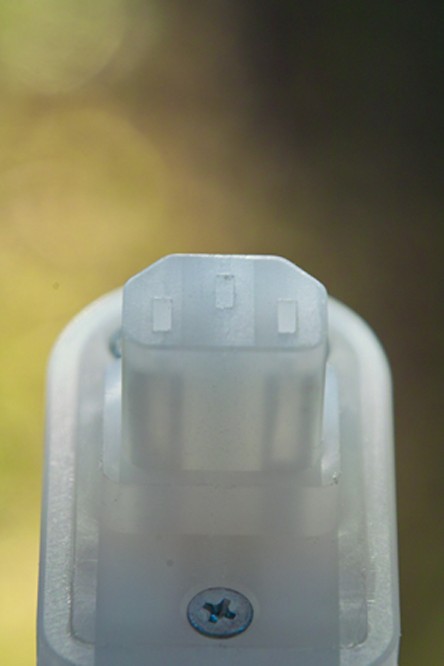

SANTAMARIA

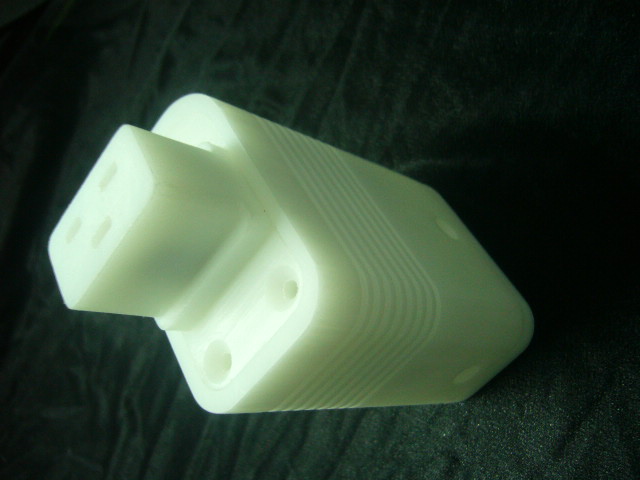

SANTALUCIA




Recommendations:
When installing wire cores into the wire cylinder buckets it is recommended that a firm shim is emplaced between the base of the set screws and the wire core wires; This so that the torque of the set screws does not shear the wire cores.
The rearward set screw has slightly less tension than the forward set screw; both must be firm but both must not be screwed so hard that they shear the wire cores they secure.
Test everything!
